  • Copper Products

Copper Products

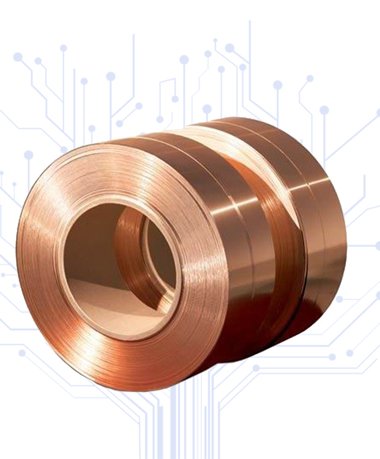

Copper Strip

Width (mm) Thickness (mm) Weight (Kg/m)
12 3 0.380
12 5 0.570
12 6 0.761
19 3 0.570
19 5 0.856
19 6 1.141
25 3 0.761
25 5 1.141
25 6 1.522
25 10 2.263
25 12 3.044
32 3 0.952
32 5 1.427
32 6 1.903
32 10 2.854
38 3 1.141
38 5 1.712
38 6 2.283
38 10 3.425
38 12 4.567
38 16 5.708
50 3 1.522
50 5 2.262
50 6 3.044
50 10 4.527
50 12 6.089
50 16 7.611
62 6 3.805
62 10 5.708
62 12 7.611
62 16 9.515
75 6 4.567
75 10 6.850
75 12 9.134
75 16 11.417
100 6 6.089
100 10 9.055
100 12 12.179
100 16 15.223
125 6 7.609
125 10 11.414
125 12 15.219
150 6 9.131
150 10 13.697
150 12 18.263
150 16 22.833
Product Image
Product Image

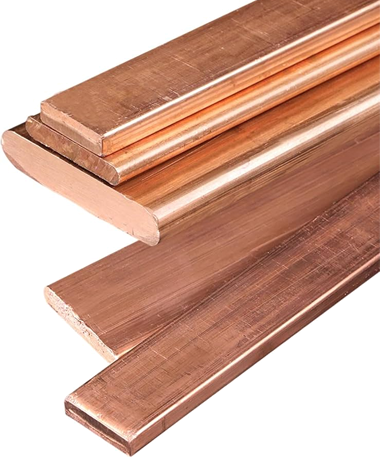

Copper Flats

Material High Conductivity Copper (Grade: ETP / DHP)
Thickness 2mm to 50mm (Custom sizes available)
Shape Flat / Rectangular / Square (Custom Cut as per requirement)
Surface Finish Mill Finish / Polished / Hot Rolled
Operating Temperature -40°C to 200°C
Electrical Conductivity High Conductivity (Approx. 99.9% Pure Copper)
Feature Corrosion Resistant, Excellent Thermal & Electrical Conductivity, Durable

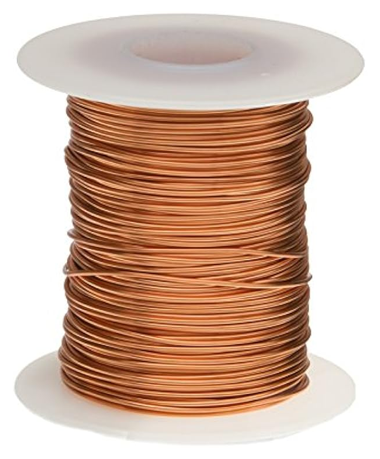

Copper Wire

Guage mm Weight (Kg. Gms) Guage mm Weight (Kg. Gms)
3 6.400 0.287 12 2.640 0.049
6 4.876 0.166 14 2.032 0.027
8 4.064 0.116 16 1.625 0.018
10 3.231 0.075 18 1.214 0.010
Product Image
Product Image

Copper Round Bar

Material High Grade Copper (ETP / Electrolytic Tough Pitch)
Shape Round
Diameter 6mm to 200mm (Custom sizes available)
Length 1 Meter to 6 Meter (As per requirement)
Surface Finish Bright Finish / Polished / Mill Finish
Operating Temperature -40°C to 200°C
Feature High Electrical Conductivity, Corrosion Resistant, Excellent Machinability

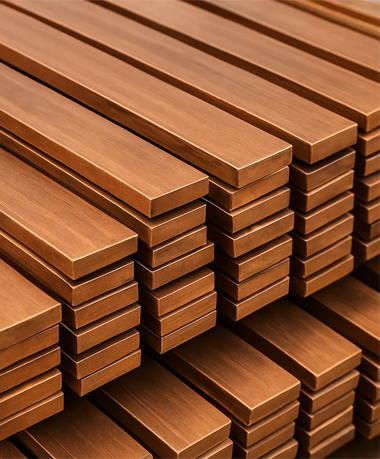

Copper Fabricated Bus Bars

Condition New
Finish Smooth
Size Custom as per Specification
Cross Dimension Varies as per Design
Diameter Applicable for Round Bus Bar: 10 mm to 100 mm
Surface Treatment Tin Plated / Silver Plated / Bare
Outer Diameter As per Requirement
Product Image
Product Image

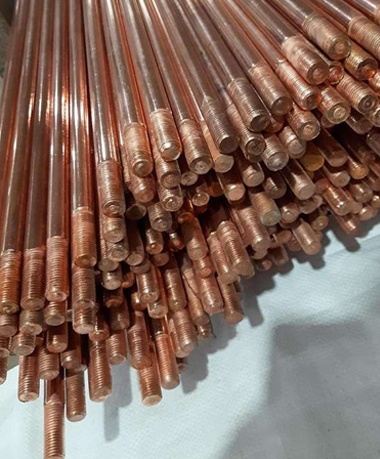

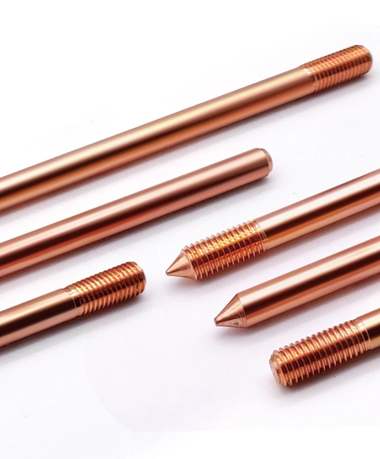

Copper Earthing Rod

Product Type Earthing Rod
Surface Treatment Electrolytic Copper Plated
Finish Bright Polished
Condition New
Outer Diameter As per Specification
Standard Diameters 12 mm, 14 mm, 16 mm, 17.2 mm, 19 mm
Size Custom as per Requirement

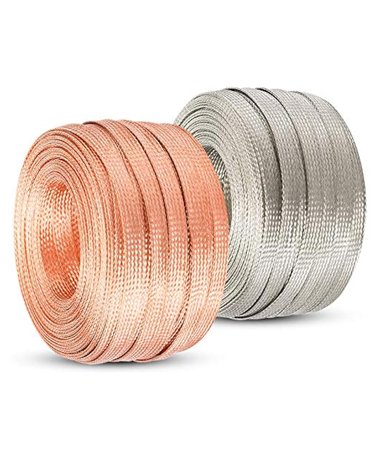

Braided Copper Wire

Condition New
Material High Conductivity Copper
Finish Smooth / Flexible Braided
Size Custom as per Requirement
Cross Section Varies (e.g., 6 sq mm to 150 sq mm)
Length As per Requirement
Surface Treatment Tin Plated / Bare Copper
Application Earthing, Electrical Bonding, Flexible Connections
Product Image
